LED Display From 9000BTU DC Inverter 100% Solar Air Conditioner With Solar Panel
Original price was: $729.00.$699.00Current price is: $699.00.
- Place of Origin: China; Capacity (btu): 9000BTU-24000BTU
- EER: 4.00-4.67; Power (W):2600W-7200W
- Power Type: DC; After-sales Service Provided:Free spare parts
- Warranty: 1 Year; Type: Split Wall Mounted Air Conditioners, 100% solar air conditione;r
- Cooling/Heating: Cooling/Heating;
- Power Source: Solar; Maximum Airflow Rate:450-1050 m³/h;
- App-Controlled: Yes; Featured Function: 100% Solar Air Conditioner
- Recommended Room Size（square feet）:100-520;
- Refrigerant: R410a / R134a; Noise: ≤60 dB;
- Air Flow Volume: 450-1050 m³/h;
LED Display From 9000BTU To 24000BTU DC Inverter 100% Solar Air Conditioner With Solar Panel
Main Category
Specification
|
Capacity
|
9000BTU
|
12000BTU
|
18000BTU
|
20000BTU
|
24000BTU
|
|
0.75TON
|
1TON
|
1.5TON
|
1.8TON
|
2TON
|
|
|
1HP
|
1.5HP
|
2HP
|
2.5HP
|
3HP
|
|
|
Function
|
Cooling Only / Heat And Cool
|
||||
|
Power saving
|
Inveter / No Inveter
|
||||
|
Refrigerant
|
R134a;R410a etc
|
||||
|
Cooling Power
|
2600W
|
3500W
|
5200W
|
6000W
|
7200W
|
|
Heating Power
|
2800W
|
3700W
|
6000W
|
7000W
|
7900W
|
|
Noise(indoor)
|
≤40 dB
|
≤42 dB
|
≤43 dB
|
≤45 dB
|
≤50 dB
|
|
Noise(Outdoor)
|
≤50 dB
|
≤52 dB
|
≤54 dB
|
≤56 dB
|
≤58 dB
|
|
Air Circulation
|
450m³/h
|
550m³/h
|
650m³/h
|
850m³/h
|
1050m³/h
|
|
Suitable Area
|
10~15m²
|
12~25m²
|
20~30m²
|
26~42m²
|
30~48m²
|
|
EER (W/W)
|
4.56
|
4.12
|
4.00
|
4.66
|
4.67
|
|
EER (Btu/h/w)
|
15.79
|
14.12
|
13.85
|
14.29
|
16.00
|
|
SEER (Btu/h/w)
|
25.30
|
26.60
|
25.80
|
26.50
|
26.40
|
|
Work Temp
|
-15~60℃
|
||||
|
Power Input
|
650W
|
850W
|
1300W
|
1400W
|
1500W
|
|
Rated Current
|
28/14A
|
35/18A
|
27A
|
30A
|
33A
|
|
Input Power
|
DC24/48V
|
DC24/48V
|
DC 48V
|
DC 48V
|
DC 48V
|
|
Indoor Unit（mm）
|
745*255*195
|
775*260*210
|
1070*385*265
|
1070*385*265
|
1070*385*265
|
|
Outdoor Unit（mm）
|
645*245*495
|
790*260*540
|
850*290*580
|
850*290*580
|
850*290*580
|
|
Working Time: 12 hours/day 4 hours/night
|
Solar panel：150W*4pcs
|
Solar panel：150W*6pcs
|
Solar panel：150W*8pcs
|
Solar panel：150W*8pcs
|
Solar panel：150W*12 pcs
|
|
Solar controller: 48V20A
|
Solar controller: 48V20A
|
Solar controller: 48V30A
|
Solarcontrolle: 48V30A
|
Solarcontroller: 48V40A
|
|
|
Batteries：12V65Ah*4pcs
|
Batteries:12V100Ah*4pcs
|
Batteries:12V150Ah*4pcs
|
Batteries:12V150Ah*4pcs
|
Batteries:12V200Ah*4pcs
|
|
|
Working Time: 12 hours/day 6 hours/night
|
Solar panel：150W*6pcs
|
Solar panel：150W*10pcs
|
Solar panel：150W*12pcs
|
Solar panel：150W*12pcs
|
Solar panel：150W*20pcs
|
|
Solar controller: 48V40A
|
Solar controller: 48V40A
|
Solar controller: 48V60A
|
Solar controlle: 48V80A
|
Solar controller: 48V80A
|
|
|
Batteries:12V100Ah*4pcs
|
Batteries:12V150Ah*4pcs
|
Batteries:12V200Ah*4pcs
|
Batteries:12V200Ah*4pcs
|
Batteries:12V150Ah*8pcs
|
|
|
More Information About Working Time : 12 hours/day 8 hours/night,12 hours/day 12 hours/night,12 hours/day 24 hours, please contact us！
|
|||||
Products Description

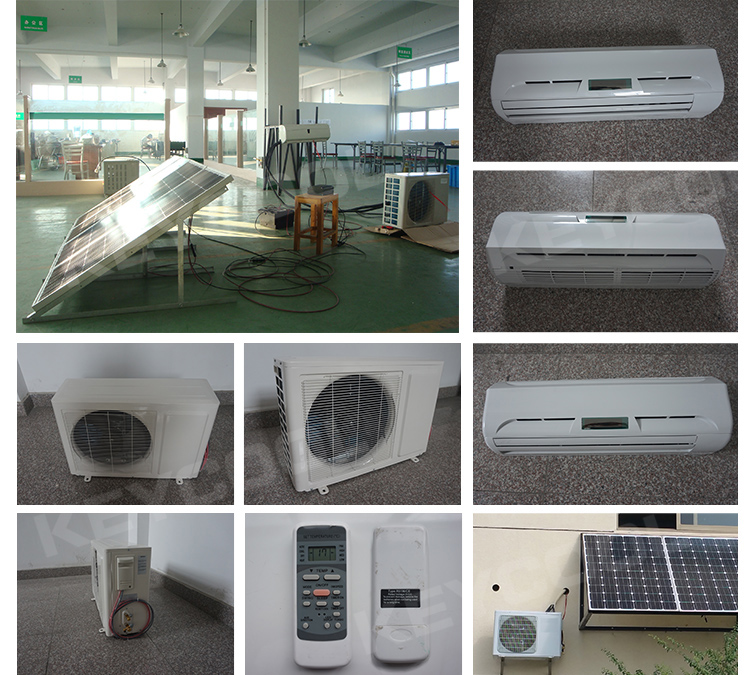

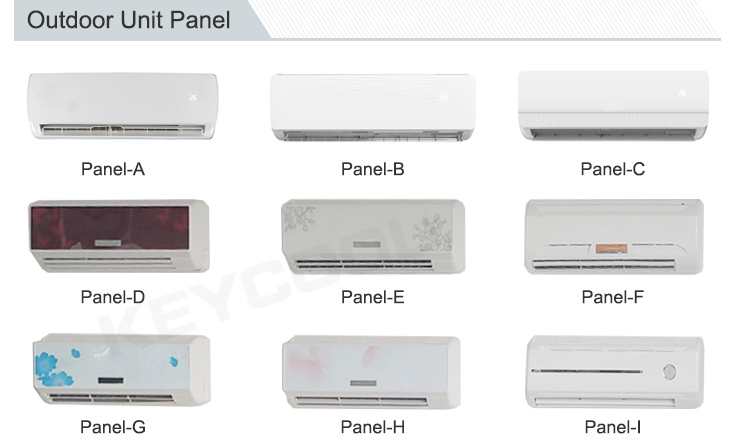

Product Show

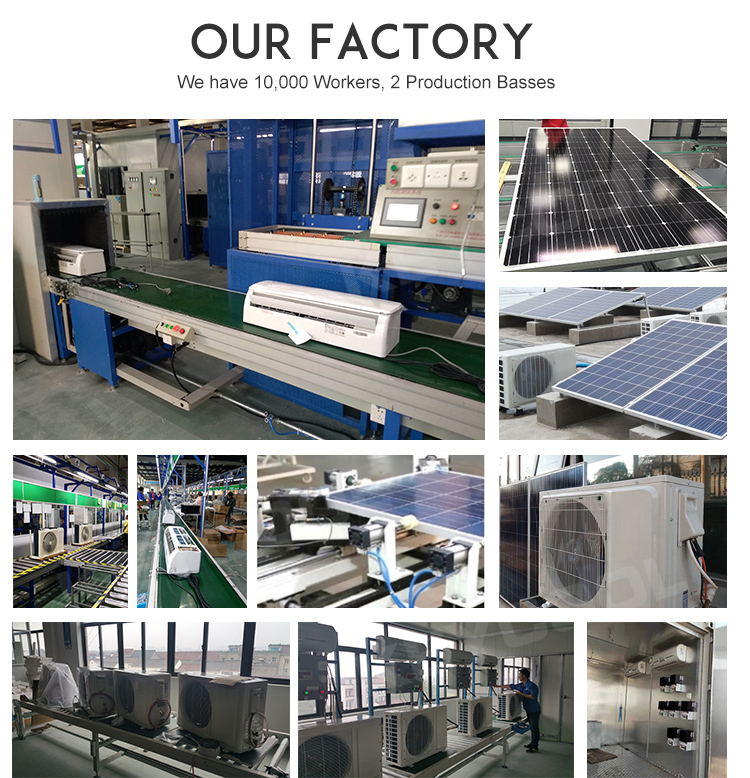

WHY CHOOSE US
Certifications
FAQ
Are you manufacturer or trading company?
We are a professional manufacturer, and we will do our best to show the best quality, fastest delivery and highest credit to you.Looking forward to cooperating with you！
What types of Solar Air Conditioner do you provide?
We provide 100% solar split air conditioner ; on grid split air conditioner ; hybrid solar split air conditioner ; solar standing air conditioner; solar portable air conditioner; solar casstte air conditioner; solar duct air conditioner.
What capacity do you provide for 100% solar split air conditioner?
We provide 9000btu,12000btu,18000btu,20000btu,24000btu etc for 100% solar split air conditioner.
How do you ensure the quality products?
We produce high quality products, we are strictly follow QC term.First our raw material supplier not only supply us. They also supply to other factory. So good quality raw material make sure we can produce high quality products .Then,we have our own test LAB which approved by SGS, TUV, each our product should received 52 testing equipment test before production. It need test from noise, performance, energy, vibration, chemical proper,function,durability,packing and transportation etc.All goods are 100% inspected before shipping. We do at least 3 tests, including in-coming raw material test, sample test then bulk production.
How about the delivery time?
It depends on your quantity. Generally, it takes35-50 days after receiving your deposit.
What are your shipping terms and payment terms?
We support FOB EXW CNF shipping terms, support TT payment. If you are high quality customer and pass sinosure, we accept LC OA 60 days, OA 90 days.
Can you provide SKD or CKD ? Can you help us build a Solar Air Conditioner factory ?
Yes, we can offer SKD and CKD, we also can provide Solar Air Conditioner production equipment assembly line and testing equipment. Please contact us for more information.
Can you accept customized LOGO？
Yes,we can customized LOGO. you just provide LOGO design to us.
How about your quality warranty ? And do you supply spare parts?
Yes, we provide 1 year warranty, and 3 years for motor, and we always provide 1% free spare parts.
How about the after-sales service?
We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
